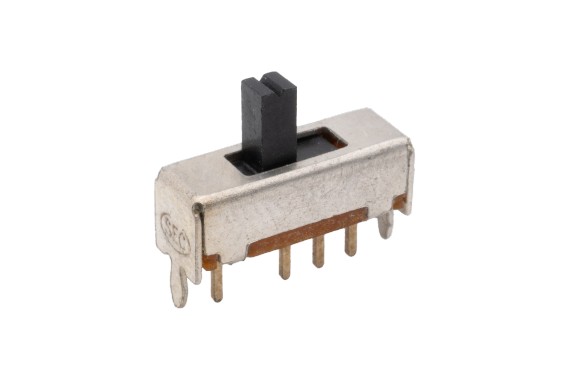

Miniature Sized Slide Switch
SLD-13-503/503A
- 4.7mm height.
- 2mm travel.
- A sharp click feeling.
*Please contact us for the current production status.
Typical Specifications
- Poles
- 1
- Positions
- 3
- Operating force
- 2.45N
- Rating
- 0.1A 12V DC
- Contact resistance
- 20mΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 500V AC for 1min
- Operating life
- 10,000cycles
