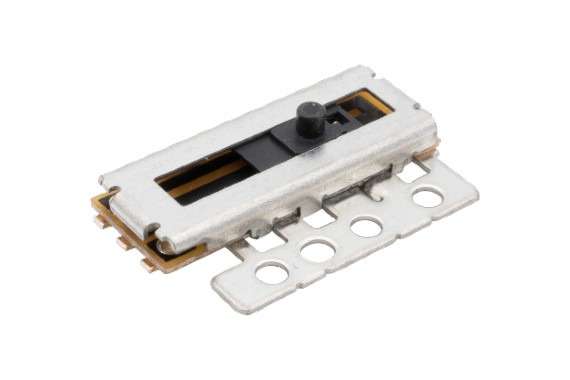

Slide Potentiometer
SLR-1-10101B

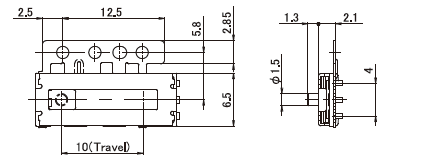

- 10mm stroke
- 2.1mm height
- 10K ohm- 50K ohm Total resistance
*Please contact us for the current production status.
Applications
Typical specifications
- Power rating
- 0.05W (Terminal 1-3）
- Rated voltage
- 5V（Maximum operating voltage 5.25V）
- Operating force
- 0.25Nmax
- Total resistance
- 10KΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 100VAC 1min.
- Operating life
- 50,000 cycles
