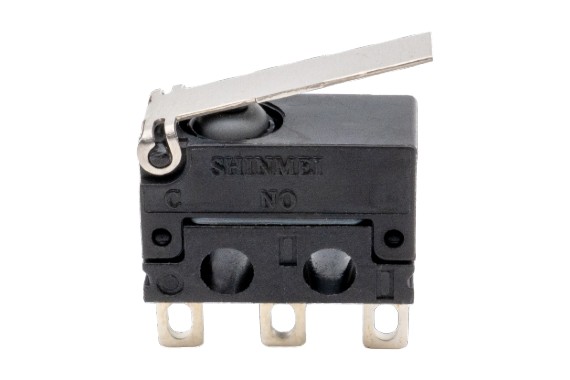

Compact Micro Switches
MQS-57
- Flux-resistant construction with integrally molded terminals.
- Suitable for the use in the watery, dusty and corrosive gas environment.
*Please contact us for the current production status.
Application
Typical Specifications
- Operating force
- 1.23~1.96N
- Rating
- 0.1~2A 30V DC(125AC)
- Contact resistance
- 30mΩ~100mΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 600V AC for 1min
- Operating life
- 30,000~10,000cycles
