Compact Micro Switches

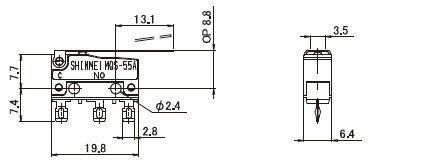

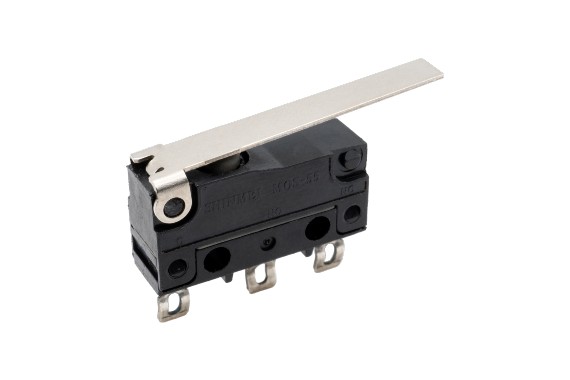

MQS-55
- Suitable for the use in the watery, dusty and corrosive gas environment.
- Flux-resistant construction with integrally molded terminals.
- 4 variations with low operating force (0.25N) to high operating force (1.47N)
- Lead wire terminal, PC board terminal, #110 Quick-connect terminal, PC board terminal Right/Left angle, Water protected type with hermetic sealed terminal are available.
- UL, CSA (C-UL) approved. File No. : E90211
*Please contact us for the current production status.
Application
Typical Specifications
- Operating force
- 0.74~1.96N
- Rating
- 0.1~2A 30V DC (125 AC)
- Contact resistance
- 30~500mΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 1000V AC for 1min
- Operating life
- 50,000~200,000cycles
