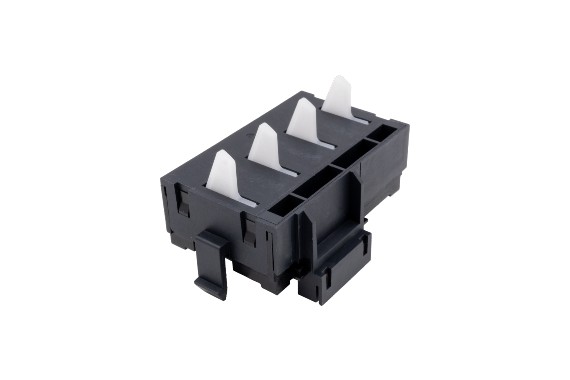

Paper Tray Detector Switches for Photocopy Machines
SW4AD-372
- Snap-in structure and connector fixing terminal, can be mounted flexibly.
- Comply with various conditions of usage with wide variety of poles and operating directions.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 4
- Positions
- 1
- Operating force
- 1N max
- Rating
- 1mA 5V DC
- Contact resistance
- 1Ω
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 100,000cycles
