Push-type Detector Switches

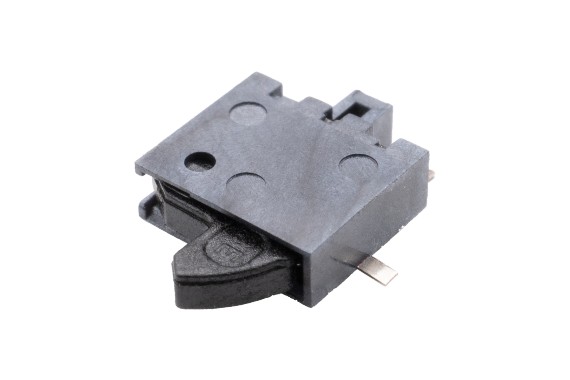

SW1AB-490-300T30
- Miniaturized for space saving design.
- Superior reliability at micro-current by employing a sliding contact.
- This is a compact detector switch which can be pressed either horizontally or vertically.
- Reflow soldering is possible.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 1
- Positions
- 1
- Operating force
- 0.5N max
- Rating
- 0.05～10mA 3～5V DC
- Contact resistance
- 1Ω
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 50,000cycles
