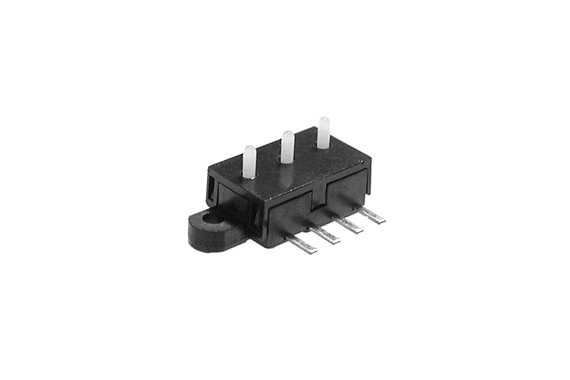

Push-type Detector Switches
SW-74
- Light operating force.
- Superior reliability at micro-current by employing a sliding contact.
*Please contact us for the current production status
Typical Specifications
- Poles
- 1~3
- Positions
- 1
- Operating force
- 0.25N
- Rating
- 1mA 5V DC
- Contact resistance
- 1Ω
- Insulation resistance
- 50MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 20,000cycles
