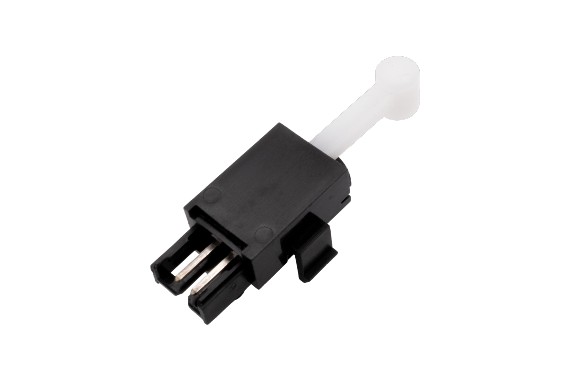

Lever-type Detector Switches
SSS-57-1

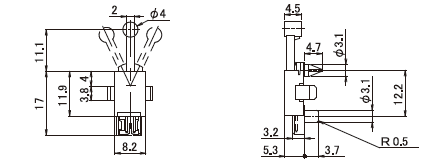

- Dimensions 8.45x7.5x3.8mm.
- Long ON travel (single side: about 26 degree)
- Custom-made of the knob style is possible and please feel free to contact us beforehand.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 1
- Positions
- 1
- Operating force
- 0.098N max
- Rating
- 1mA 5V DC
- Contact resistance
- 100mΩ
- Operating life
- 100,000cycles
