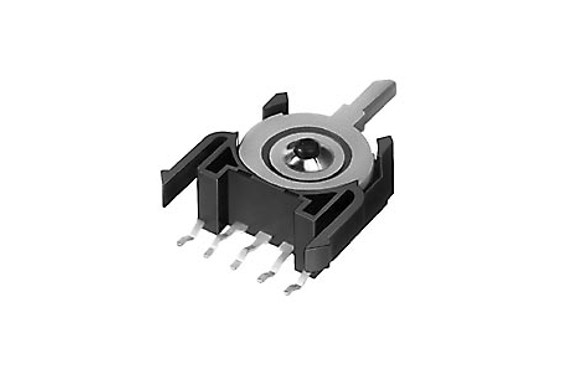

Lever-type Detector Switches
SSS-36

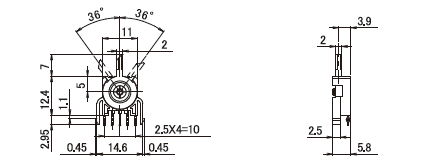

- Dimensions 12.4x11x5.8mm.
- Long ON travel (single side: about 27 degree)
- Wide variation as printed wiring and lead wiring, etc. are possible.
- Custom-made of the knob style is possible and please feel free to contact us beforehand.
*Please contact us for the current production status.。
Application
Typical Specifications
- Poles
- 3
- Positions
- 1
- Operating force
- 0.25N
- Rating
- 11mA 5V DC
- Contact resistance
- 1Ω
- Insulation resistance
- 50MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 20,000cycles
