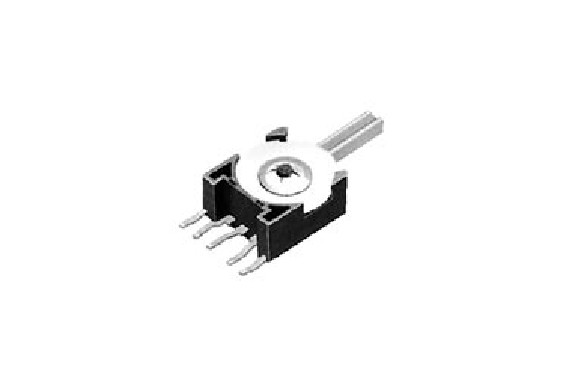

Lever-type Detector Switches
SSS-12

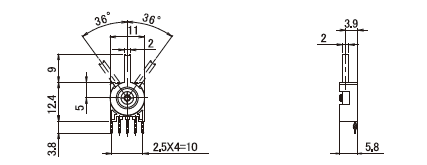

- Dimensions 12.4x11x5.8mm.
- Long ON travel (single side: about 27 degree)
- Wide variation as printed wiring and lead wiring, etc. are possible.
- Custom-made of the knob style is possible and please feel free to contact us beforehand.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 1
- Positions
- 2
- Operating force
- 0.69N max
- Rating
- 100mA 12V DC
- Contact resistance
- 100mΩ
- Operating life
- 50,000cycles
