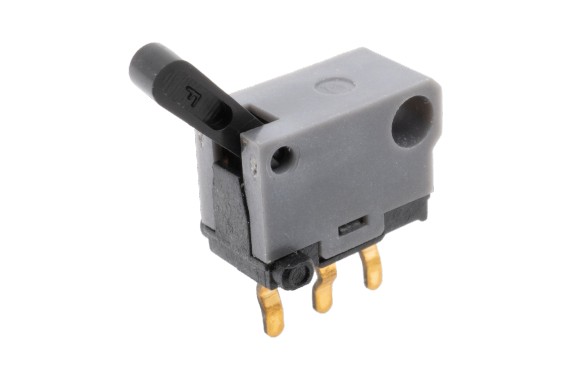

Sliding contact-type Detector Switches
MSS-08AU-24
- Sliding contact type.
- For micro-current.
- Light operating force.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 1
- Positions
- 2
- Operating force
- 1N max
- Rating
- 20mA 5V DC
- Contact resistance
- 200mΩ max
- Insulation resistance
- 10MΩ min
- Withstanding voltage
- 250V AC for 1min
- Operating life
- 20,000cycles
