Solenoid Series

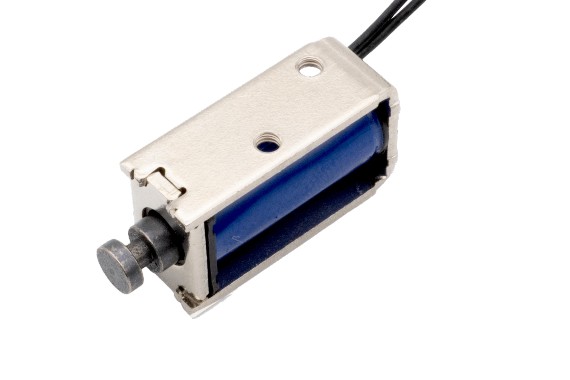

DP1120D
- Low profile design with phi 4 iron core.
*Please contact us for the current production status.
Application
Typical Specifications
- Rated voltage
- 5V DC
- Coil resistance
(20℃) - 4.3Ω
- Rated use
- ON 0.08sec max.
OFF 0.5sec min. - Suction power
(at 20°C initial value) - 0.49~1N min.
- Coil
temperature rise - 60℃ max.
- Insulation resistance
- 50MΩ min. 250V DC
- Withstand voltage
- 250V AC for 1 minute
- Insulation class
- JIS E class(except lead wire)
- Operating life
- 100,000 cycles
