Solenoid Series

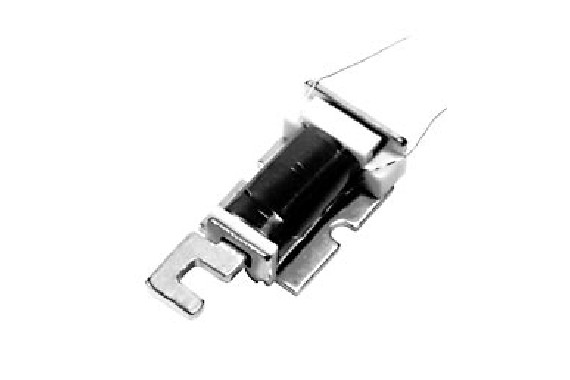

DL0512S2

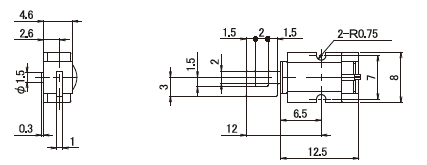

- Miniaturized design for space saving (Dimensions 4.6x8.0x12.5mm).
- Self-Latching is available at zero power consumption by installing permanent magnet.
*Please contact us for the current production status.
Application
Typical Specifications
- Rated voltage
- 3~5V DC
- Coil resistance
(20℃) - 7.5~26Ω
- Rated use
- ON 0.1~1sec max.
OFF 5~9sec min. - Suction power
(at 20°C initial value) - 0.05~0.8N min.
- Coil
temperature rise - 60℃ max.
- Insulation resistance
- 50MΩ min. 250V DC
- Withstand voltage
- 250V AC for 1 minute
- Insulation class
- JIS E class(except lead wire)
- Operating life
- 10,000 cycles
