IC card connectors

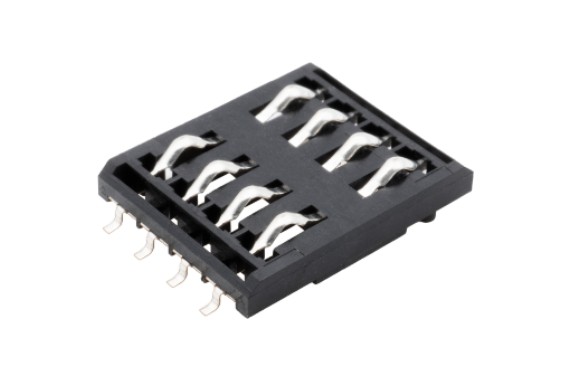

SCN-1308-4
- Provision for suction space allows for automatic mounting.
- Can be supplied in embossed taping for automatic mounting.
- A detection switch is the high reliability by self cleaning structure.
*Please contact us for the current production status.
Applications
Typical specifications
- Applicable card
- ISO-7816
- Rating
- 1A 4V DC
- Contact resistance
- 40 mΩ
- Insulation resistance
- 100 MΩ
- Withstanding voltage
- 250 V AC for 1 min
- Operating life
- 3,000 cycle
