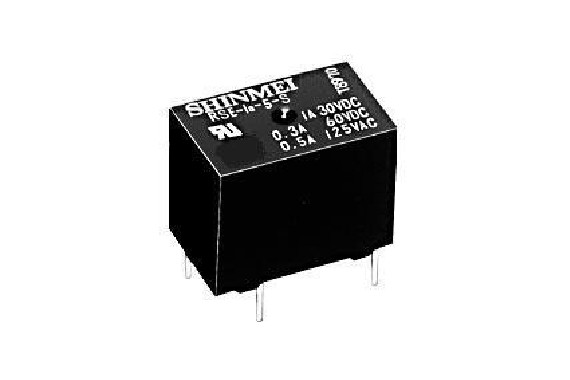

Signal Relay
RSE Series
Typical Specifications
- Rating
- 1A 30V DC
0.3A 60V AC
0.5A 120V AC - Max .switching power
- 30W，60VA
- Max .switching voltage
- 60V DC，125V AC
- lectric power
consumption - 200mW(Standard type）
50，150mW(High sensitive type ） - Withstanding voltage
- AC500V
- Mechanical life
- 10,000,000 operations
(at 180cpm) - Electrical life(at rating)
- 100,000 operations （1A 30V DC,0.3A 60V DC, 0.5A 120V AC）
(at 20cpm)
