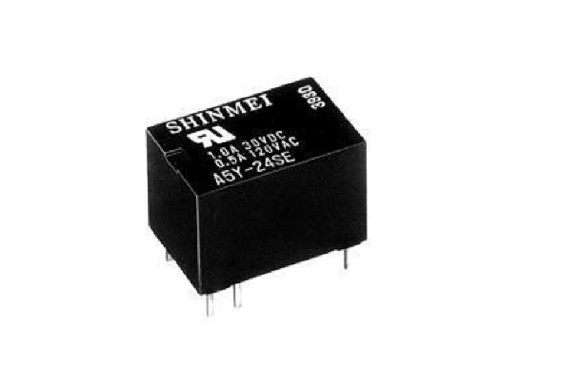

Signal Relay
A5 Series
Typical Specifications
- Rating
- 1A 30V DC
0.5A 125V AC - Max .switching power
- 30W，60VA
- Max .switching voltage
- 60V DC，120V AC
- Electric power
consumption - 400mW,（Standard type）
200mW(High sensitive type） - Withstanding voltage
- AC 500V
- Mechanical life
- 10,000,000 operations
(at 600cpm) - Electrical life
(at rating) - 500,000 operations
(1A 30V DC) 200,000 operations
(0.5A 120V AC)
(at 20cpm)
