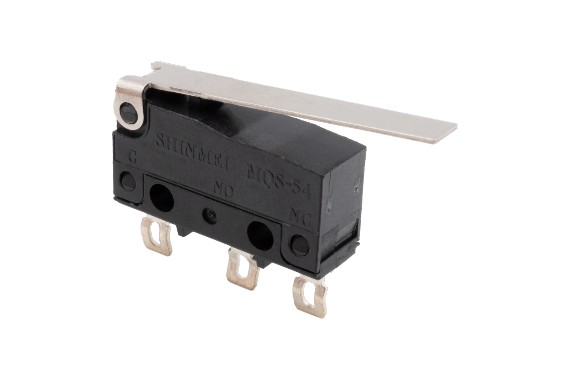

Compact Micro Switches
MQS-54
※产品介绍以及详细介绍（PDF数据）只有英语版。
- Flux-resistant construction with integrally molded terminals.
- 4 variations with low operating force (0.25N) to high operating force (1.47N).
- Lead wire terminal,PC board terminal,#110 Quick-connect terminal,PC board terminal Right/Left angle are available.
- UL, CSA (C-UL) approved. File No. : E90211
*Please contact us for the current production status.
Typical Specifications
- Operating force
- 0.25~1.47N
- Rating
- 0.1~3A 30V DC (125 AC)
- Contact resistance
- 30~500mΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 1000V AC for 1min
- Operating life
- 50,000~200,000cycles
