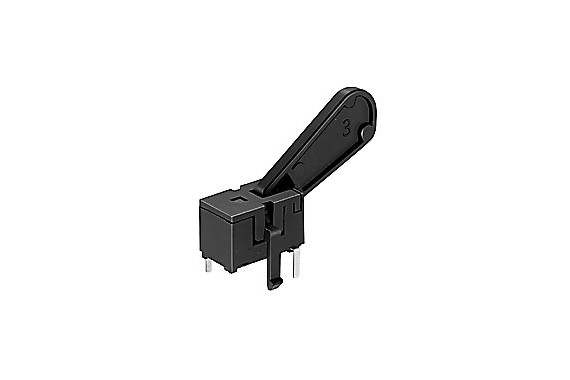

Paper detector, Detection Switches
SW-168-501AU
※产品介绍以及详细介绍（PDF数据）只有英语版
- Slight-touch switch for paper detection.
- Superior for reliability at micro-current by employing a sliding contact.
- Permits snap-in temporary mounting.
- A wide variety of operation components.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 1
- Positions
- 1
- Operating force
- 0.029N max
- Rating
- 1mA 5V DC
- Contact resistance
- 10Ω
- Insulation resistance
- 50MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 100,000cycles
