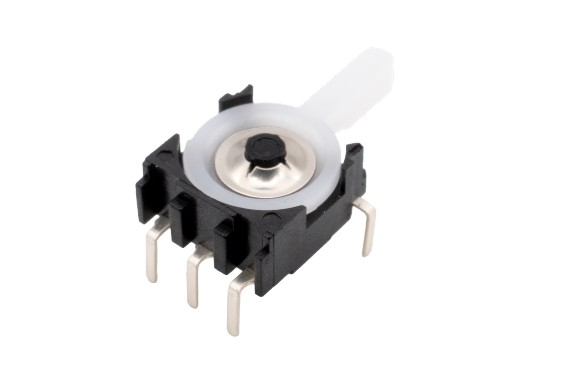

Lever-type Detector Switches
SSS-52-1
※产品介绍以及详细介绍（PDF数据）只有英语版

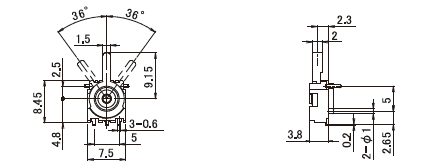

- Dimensions 8.45x7.5x3.8mm.
- Long ON travel (single side: about 26 degree)
- Custom-made of the knob style is possible and please feel free to contact us beforehand.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 1
- Positions
- 2
- Operating force
- 0.69N max
- Rating
- 10mA 5V DC
- Contact resistance
- 1Ω
- Operating life
- 50,000cycles
