Micro Slide Switches

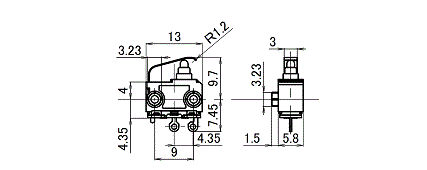

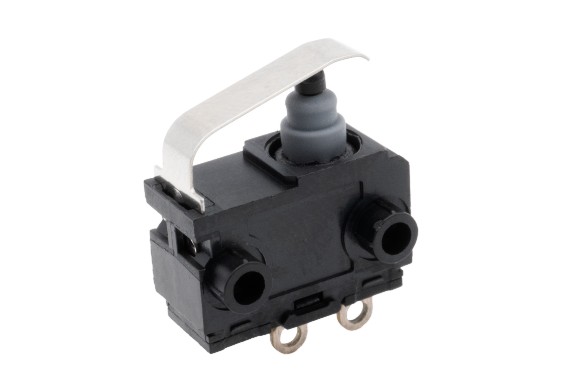

MSS-100A-R1C
- Long stroke type micro switch that can be pushed diagonally.
- Stroke 2.6mm or more without actuator.
- Superior reliability at micro-current by employing a sliding contact.
- Supports boss press-fit type and screw-fastening type mounting forms.
- Customized actuators are available.
- Customizable for dust-proof and drip-proof types.
*Please contact us for the current production status.
Application
Typical Specifications
- Operating force
- 5N max
- Rating
- 100mA 12V DC
- Contact resistance
- 500mΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 500V AC for 1min
- Operating life
- 300,000cycles
