Compact Micro Switches

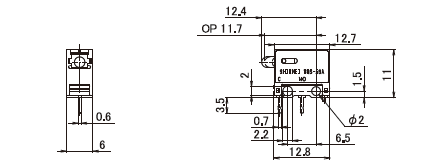

MQS-59
- Flux-resistant construction with integrally molded terminals.
- Suitable for the use in the watery, dusty and corrosive gas environment.
*Please contact us for the current production status.
Typical Specifications
- Operating force
- 1.27~1.96N
- Rating
- 0.1~1A 14V DC
- Contact resistance
- 30~100mΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 600V AC for 1min
- Operating life
- 30,000~100,000cycles
