Compact Micro Switches

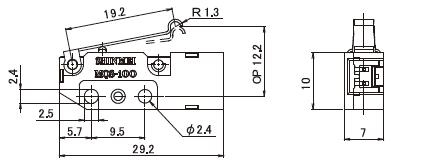

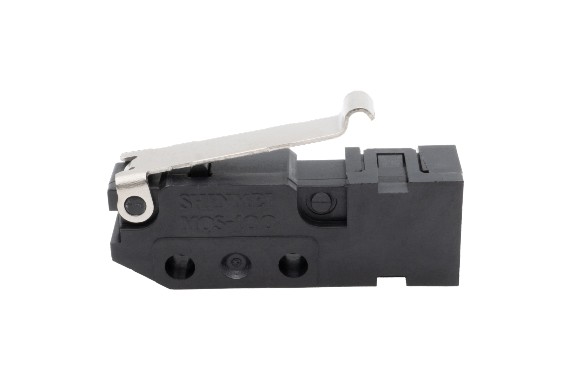

MQS-100
- S Model Micro Switch (Connector Connection Type).
- Mounting holes pitch is the same MQS-54/55 series.
- Mounting process is simplify by connector connection.
- Actuator position is 2 direction.
*Please contact us for the current production status.
Application
Typical Specifications
- Operating force
- 1.5N max
- Rating
- 0.1A 30V DC
- Contact resistance
- 100mΩ
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 1000V AC for 1min
- Operating life
- 200,000cycles
