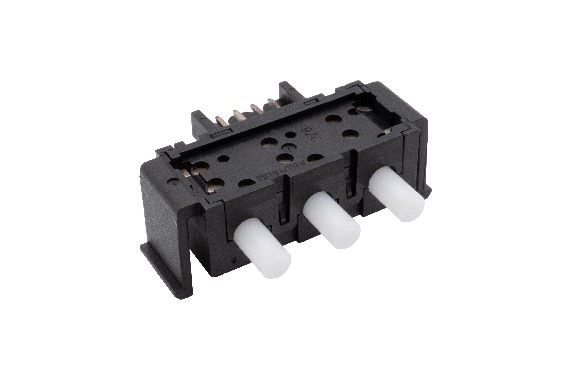

Paper Tray Detector Switches for Photocopy Machines
SW3AG-553
- Snap-in structure and connector fixing terminal, can be mounted flexibly.
- Superior reliability at micro-current by employing a sliding contact.
*Please contact us for the current production status.
Application
Typical Specifications
- Poles
- 3
- Positions
- 1
- Operating force
- 1.8N max
- Rating
- 10mA 5V DC
- Contact resistance
- 100mΩ max
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 100,000 cycles
