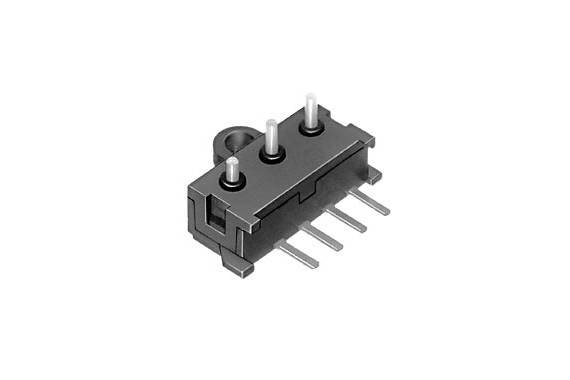

Push-type Detector Switches

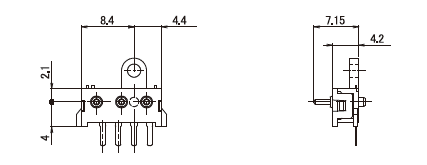

SW3AF-361-14AU
- High reliability gained by gold contact for environment.
*Please contact us for the current production status.
Typical Specifications
- Poles
- 3
- Positions
- 1
- Operating force
- 0.25N max
- Rating
- 0.2~5mA 5V DC
- Contact resistance
- 1Ω
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 100,000cycles
