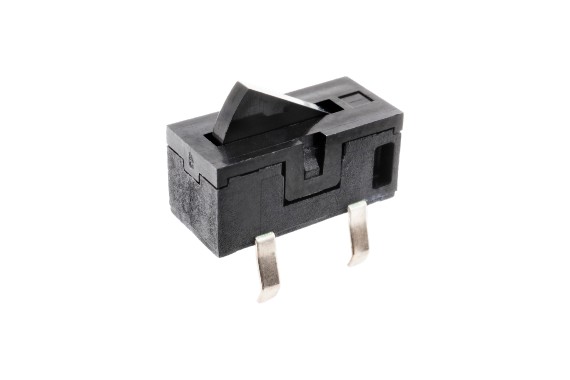

Push-type Detector Switches
SW1AB-252S
- Miniaturized for space saving design.
- Superior reliability at micro-current by employing a sliding contact.
- This is a compact detector switch which can be pressed either horizontally or vertically.
*Please contact us for the current production status.
Typical Specifications
- Poles
- 1
- Positions
- 1
- Operating force
- 0.4N max
- Rating
- 0.5~10mA 5V DC
- Contact resistance
- 1Ω max
- Insulation resistance
- 100MΩ
- Withstanding voltage
- 100V AC for 1min
- Operating life
- 100,000cycles
